Electrical Design – Commercial Warehouse Tenant Buildout

MEP Engineering

Project: Slow Burn Theatre Warehouse
Location: Oakland Park, Florida
Size: ~3,650 SF Commercial Warehouse / Office Space

This project involved the electrical design of a commercial warehouse tenant buildout, including power distribution, service modifications, and dedicated equipment circuits for industrial woodworking equipment. A complete electrical plan set for permitting was developed to support the electrical infrastructure for a 3,650 square foot warehouse and office space.

The design included a new 200A electrical distribution panel and wireway system to support specialized fabrication equipment such as a CNC router, table saws, band saws, compressors, and welding equipment. Dedicated circuits and disconnects were designed to safely supply each machine while meeting NEC electrical design requirements.

Service upgrades were also designed within the building’s meter room, including the installation of a new electrical meter, 400A wireway, and 200A main service disconnect to provide power to the tenant space. Electrical load calculations were performed to determine system capacity and verify proper service sizing.

The project also included electrical load analysis, panel schedules, equipment schedules, conduit routing, and demolition and proposed electrical riser diagrams. Existing lighting systems and office electrical infrastructure were evaluated and maintained as part of the design.

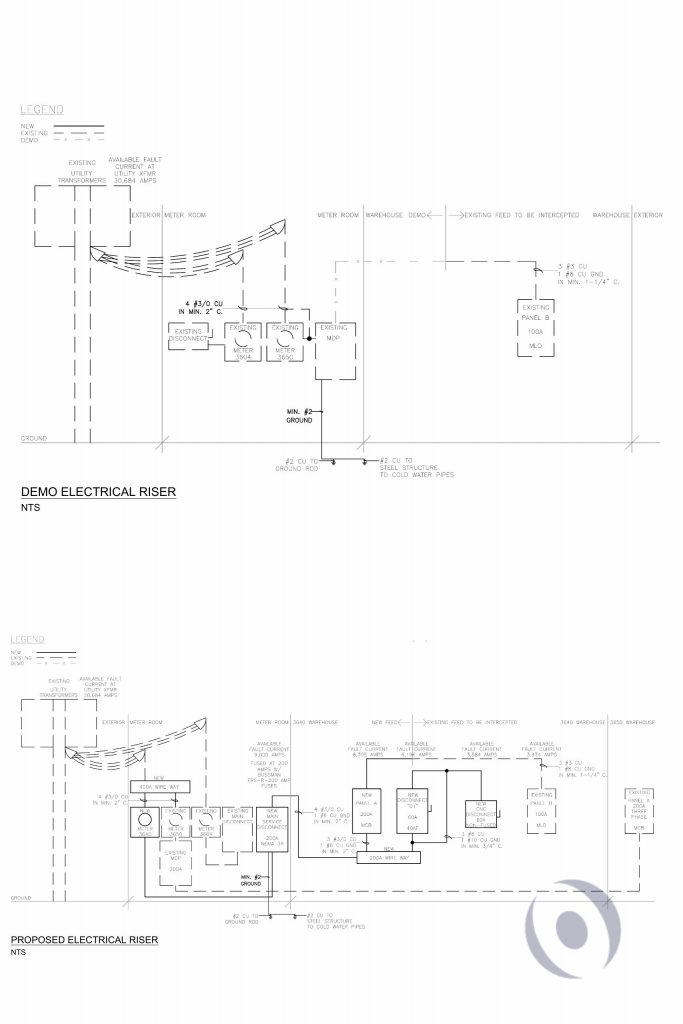

  • A black-and-white technical blueprint showing two electrical riser diagrams stacked vertically. The top diagram is labeled "DEMO ELECTRICAL RISER" and illustrates the existing electrical infrastructure, meters, and disconnects slated for demolition or modification. The bottom diagram is labeled "PROPOSED ELECTRICAL RISER" and details the new configuration, including updated wire ways, new main service disconnects, and new panels (Panel A and Panel B) across the meter room and warehouse spaces. Both diagrams include a legend for new, existing, and demo lines, along with grounding details at the bottom.
    Comparison between the Demo Electrical Riser diagram (top) and the Proposed Electrical Riser diagram (bottom), detailing updates to the utility transformers, meter rooms, and warehouse power distribution.

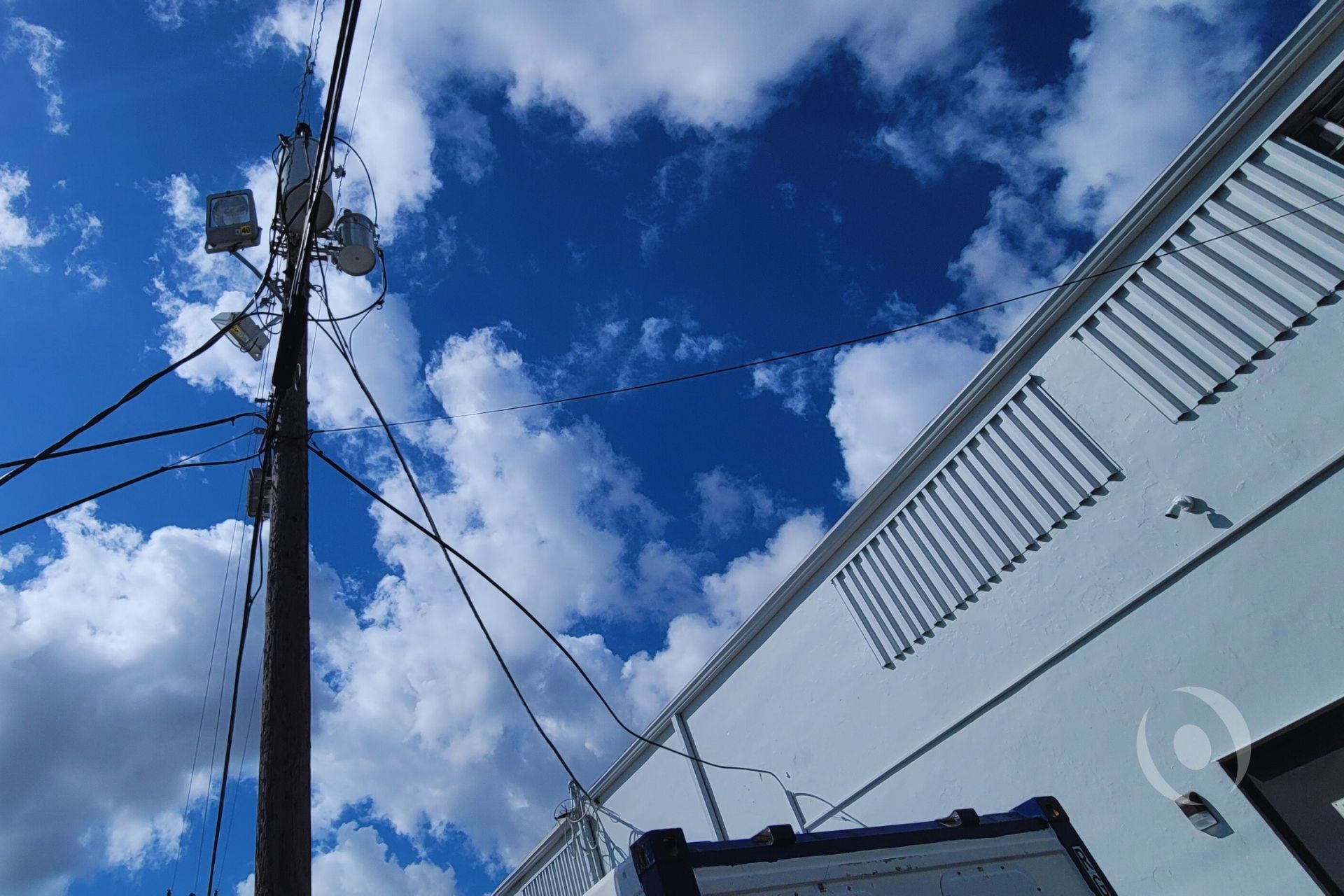

  • A low-angle shot showing a wooden utility pole equipped with wires, a transformer, and streetlights on the left. On the right, the textured white exterior wall of a building cuts diagonally across the frame. A deep blue sky with fluffy white clouds fills the background.
    A utility pole with complex wiring and a transformer stands against a vibrant blue sky filled with white clouds, framed by the angled side of a light-colored building.

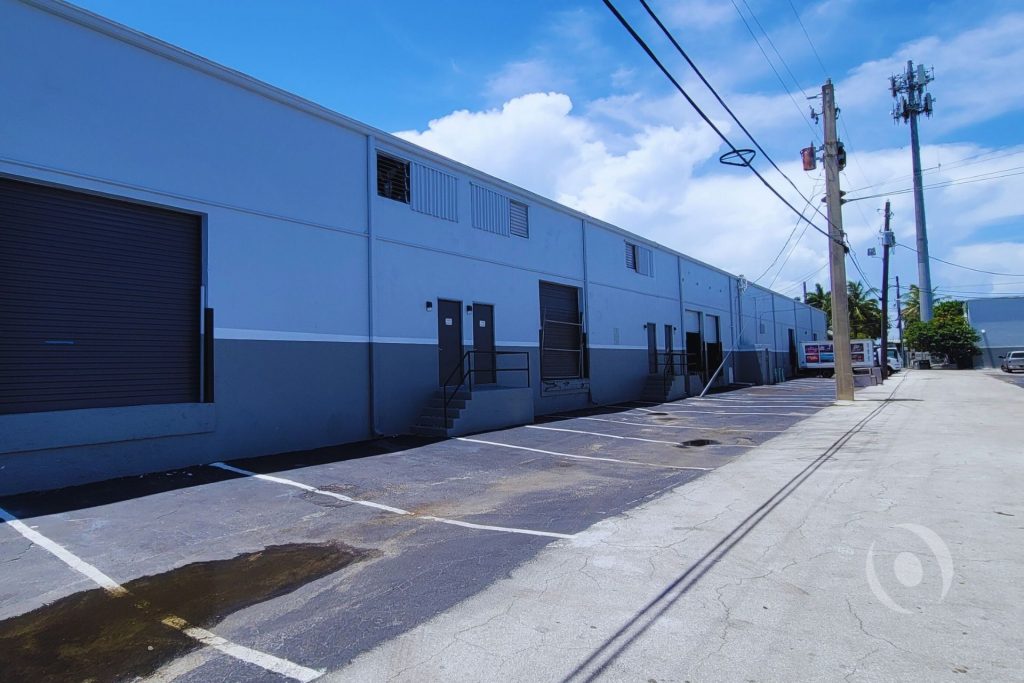

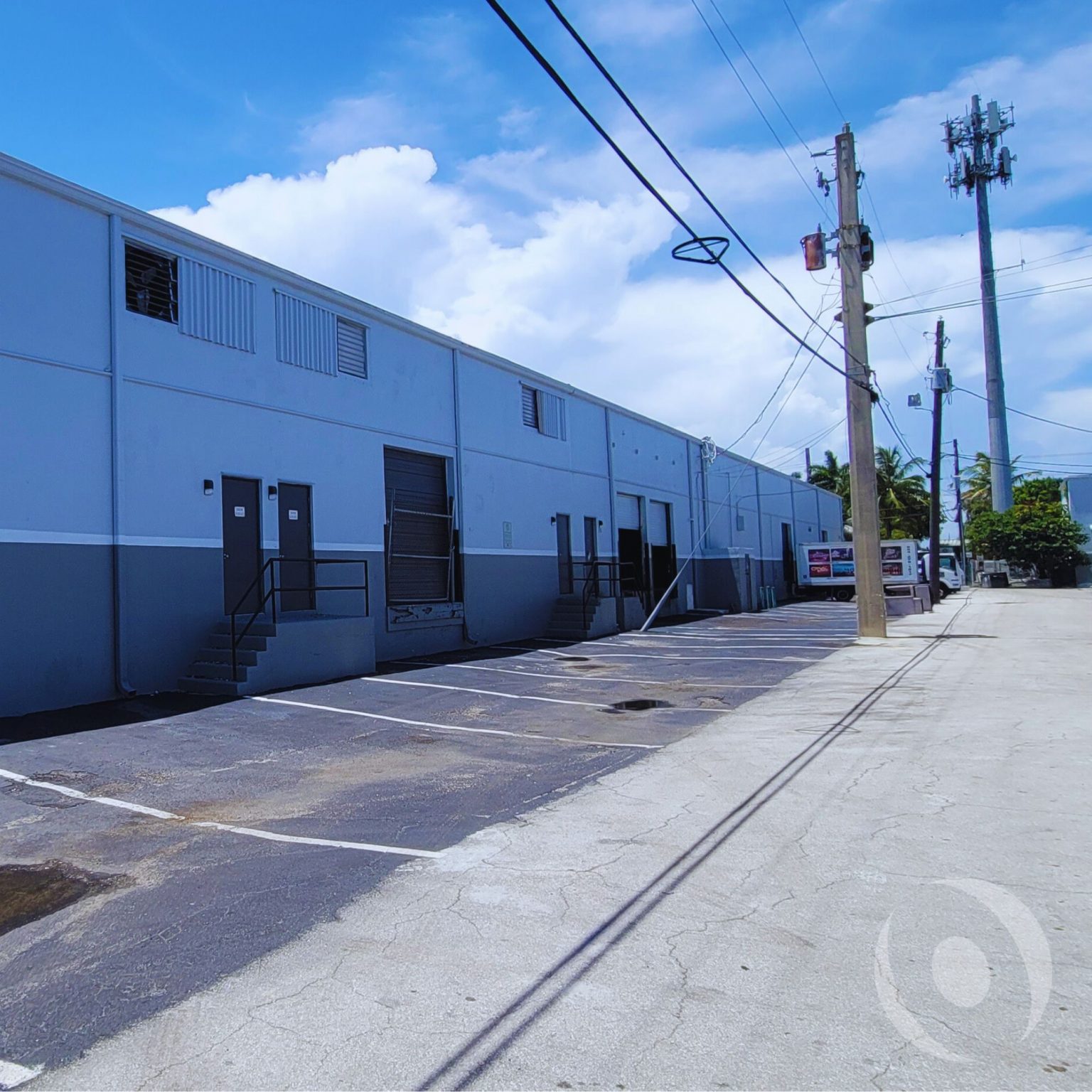

  • A long, two-tone grey industrial warehouse building with several roll-up bay doors, entry stairs, and a paved parking lot with white stalls. An alleyway runs along the right side next to utility poles and a cell tower in the background under a bright sky.
    Exterior view of a modern grey commercial warehouse building featuring multiple loading docks, roll-up doors, and designated parking stalls under a partly cloudy blue sky.
