Oceanfront Condominium Renovation
Project: Full-Unit Condominium Architectural Redesign & MEP Engineering
Location: Hallandale Beach, Florida
Size: 1,250 SF Oceanfront High-Rise Condominium Unit

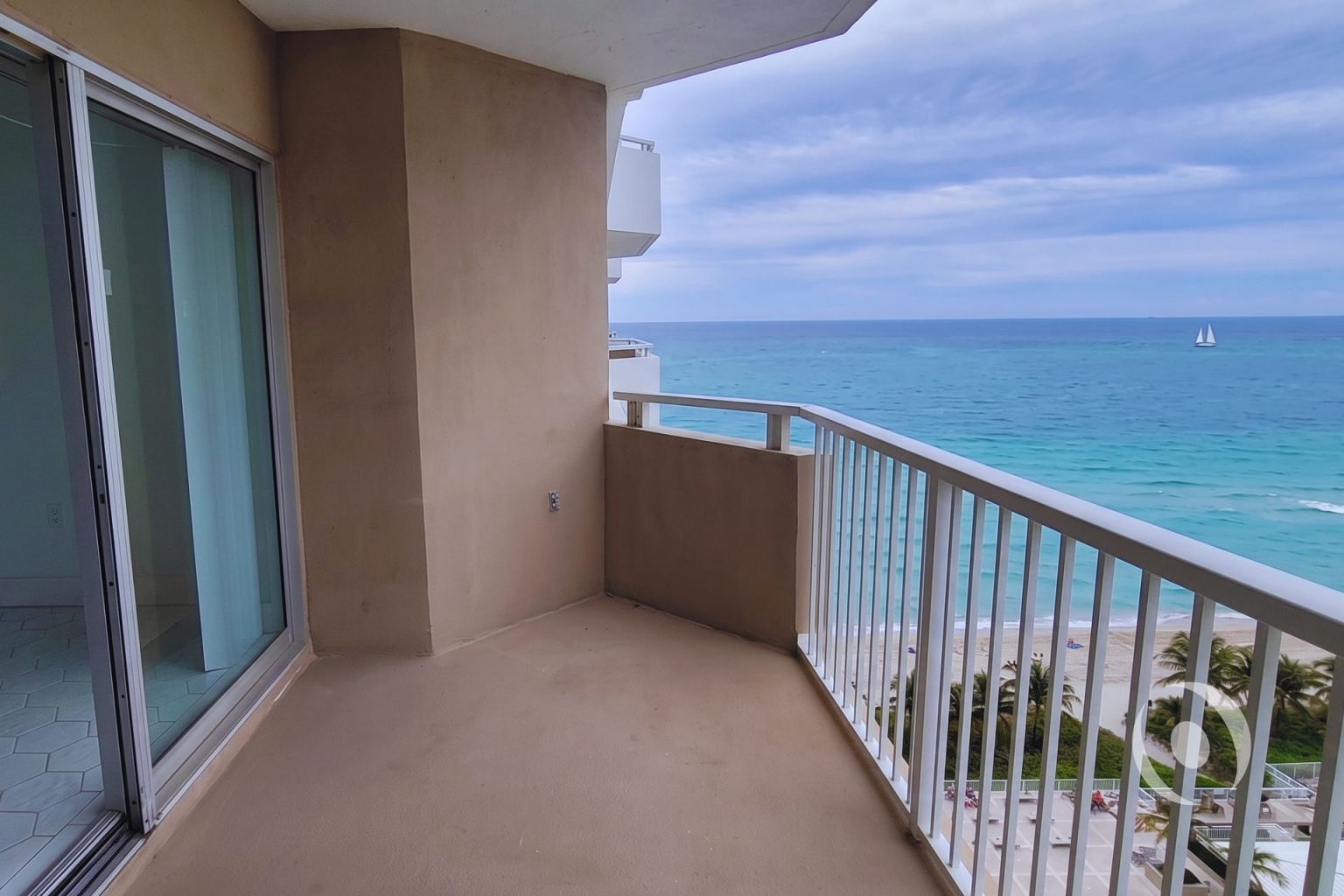

When the ocean is your backyard in South Florida, the interior needs to match the address.
A Space That Had More to Give

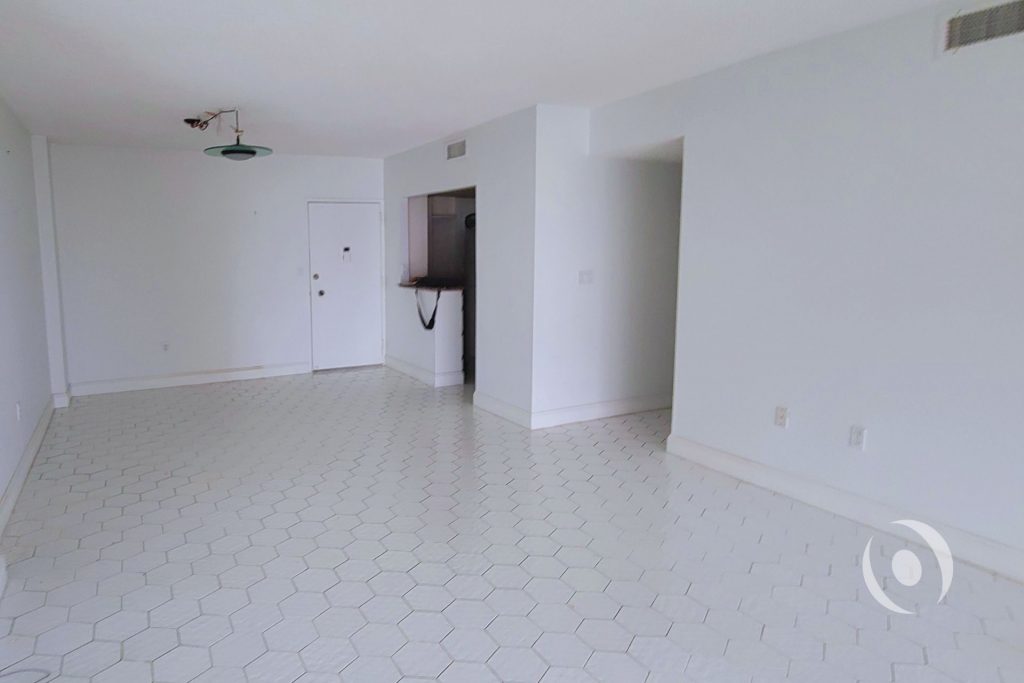

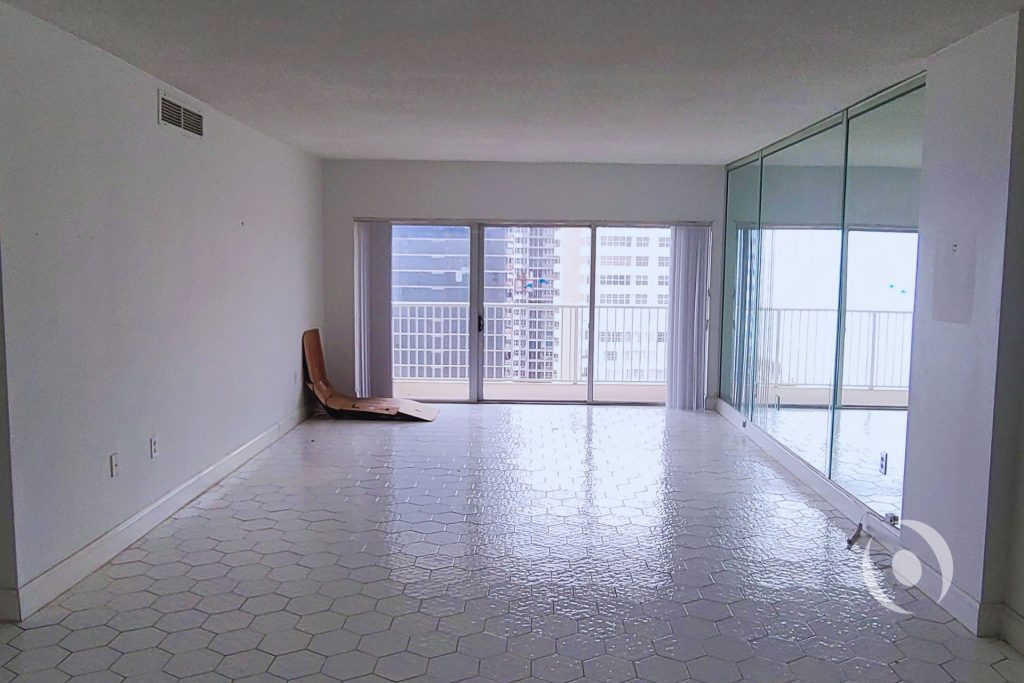

A high-rise condominium renovation in Hallandale Beach, Broward County starts with more constraints than most projects. The address was exceptional. The original floor plan was not. The kitchen was closed off and undersized. There was no defined workspace. Rooms existed by default rather than by design. The owners had a clear picture of what the space could become. What they needed were permit-ready architectural and MEP plans built by a licensed engineering firm that understands construction as well as design, because inside a high-rise condominium in South Florida, drawings that look good but do not coordinate across disciplines are not drawings any contractor can build from.
Rethinking the Floor Plan from the Ground Up

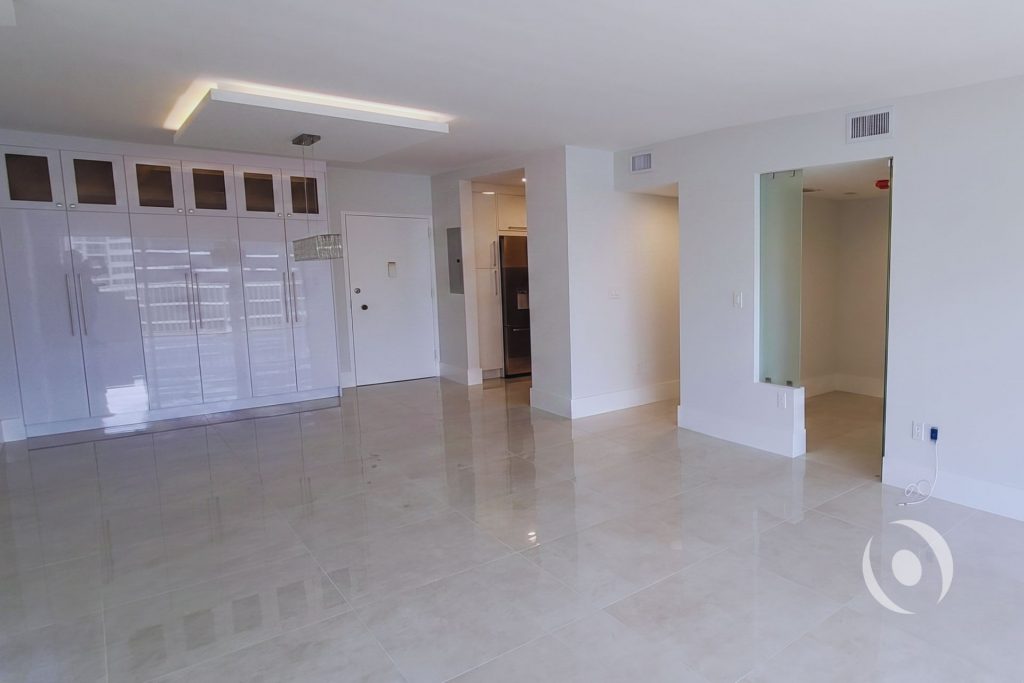

NOHMIS started at the bones. The existing corridor opening into the kitchen was closed off and built out, converting that dead transition zone into the entry of a new den. The kitchen was repositioned and opened up. A new enclosed office was framed with heavy-gauge metal studs and fitted with a glass door and frosted glass transom, bringing light into the space without sacrificing acoustic privacy. Every wall location, ceiling height, and room dimension was resolved in the construction documents before the first contractor conversation.

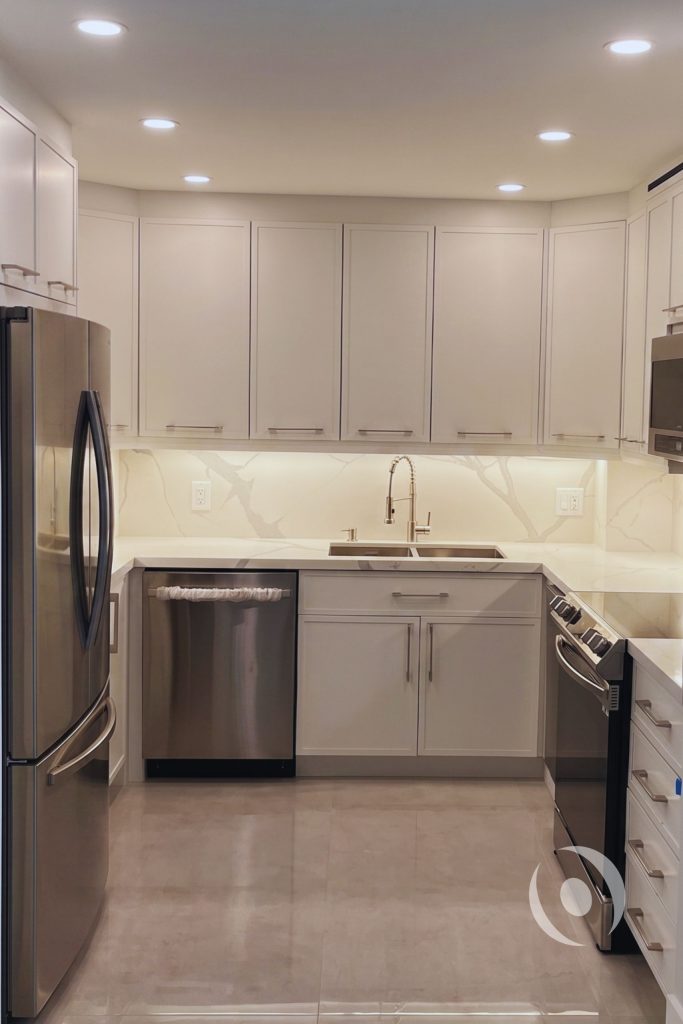

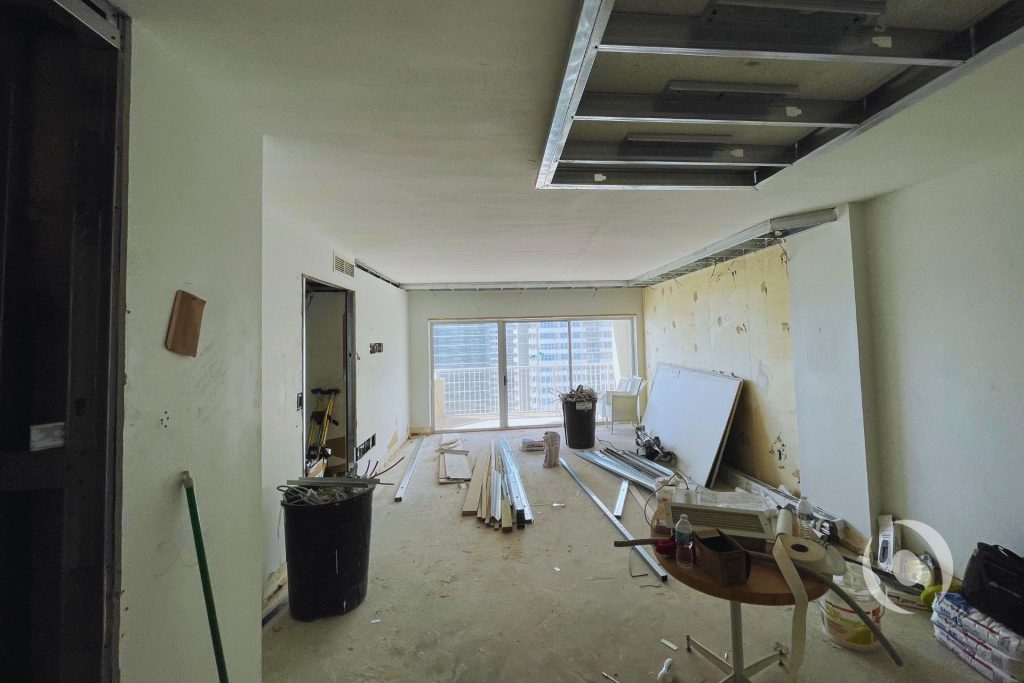

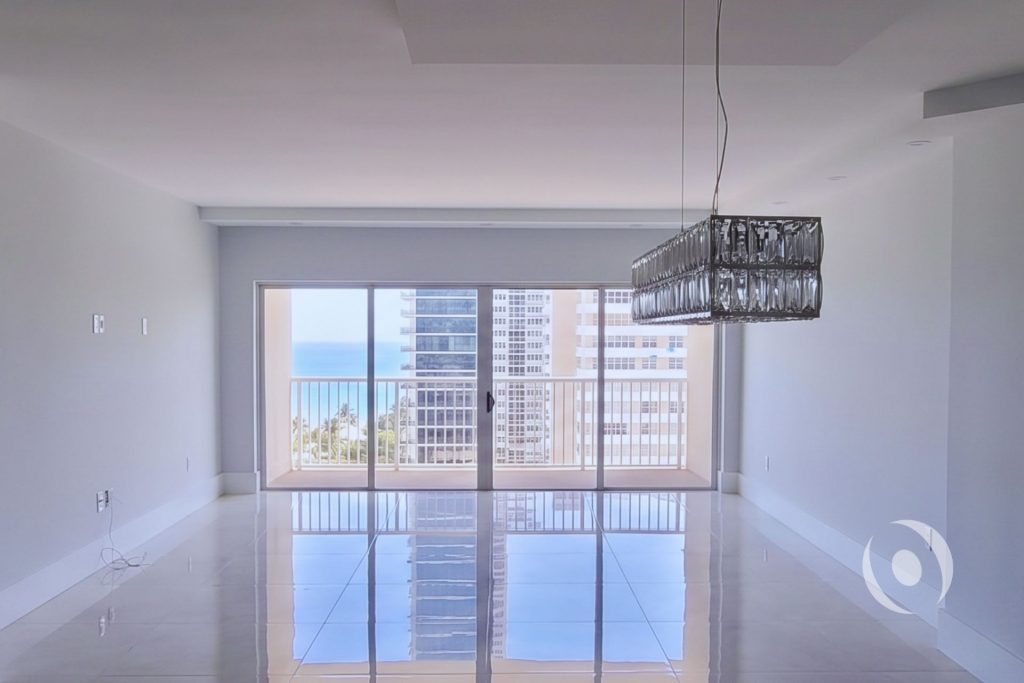

The kitchen received four-sided architectural elevations with precise measurements on every wall. Cabinet coordination extended to shop drawing review, confirming manufacturer dimensions against the engineered layout before anything was ordered or installed. Upper cabinets run to full ceiling height for maximum storage. Countertops were specified at a substantial slab thickness with a refined double-edge finish, plywood backing, and soft-close hardware throughout. Large-format rectified porcelain tile in a diagonal pattern covers the main living areas, with generously sized non-slip rectified tile in the bedrooms. Dropped ceilings in the master bedroom and den were framed with commercial-grade metal studs and detailed with soffit profiles built to carry integrated LED strip lighting. The condo association required a thick cork soundproofing layer under all new flooring across the entire unit, and that requirement was engineered into the scope from the beginning, not discovered mid-construction.
The Engineering Behind the Walls

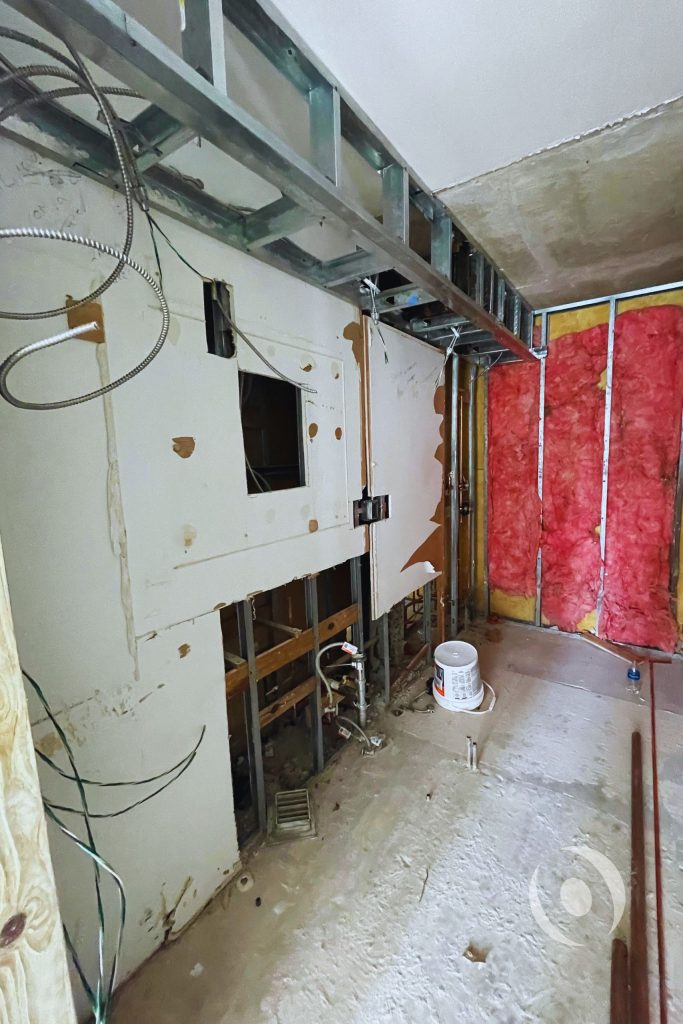

The electrical design, produced by a licensed professional engineer and fully compliant with the Florida Building Code, replaced the unit’s outdated system with a new high-capacity panel, converting the existing panel to a junction box. Every circuit was drawn from scratch: arc-fault and GFI-protected circuits throughout, new recessed lighting in every room, LED accent lighting in the kitchen and living areas, LED under-cabinet lighting, LED strip lighting integrated into the soffit framing, and new bath exhaust vents. Every electrical box at a fire-rated wall was detailed with fire-stop putty pads, maintaining the building’s full UL-rated fire assembly at every penetration.

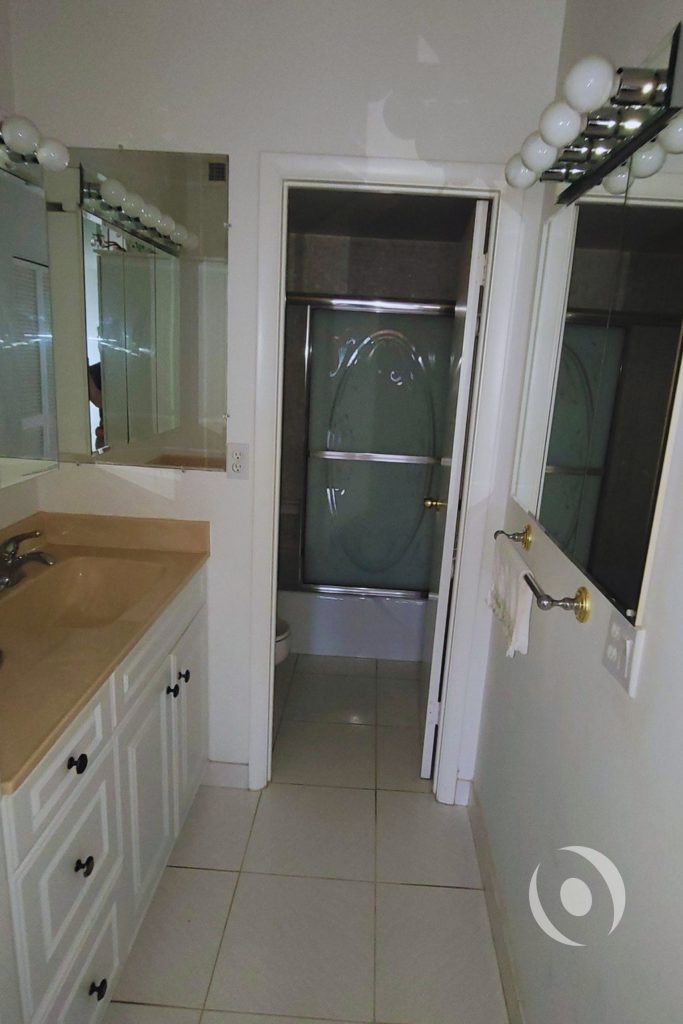

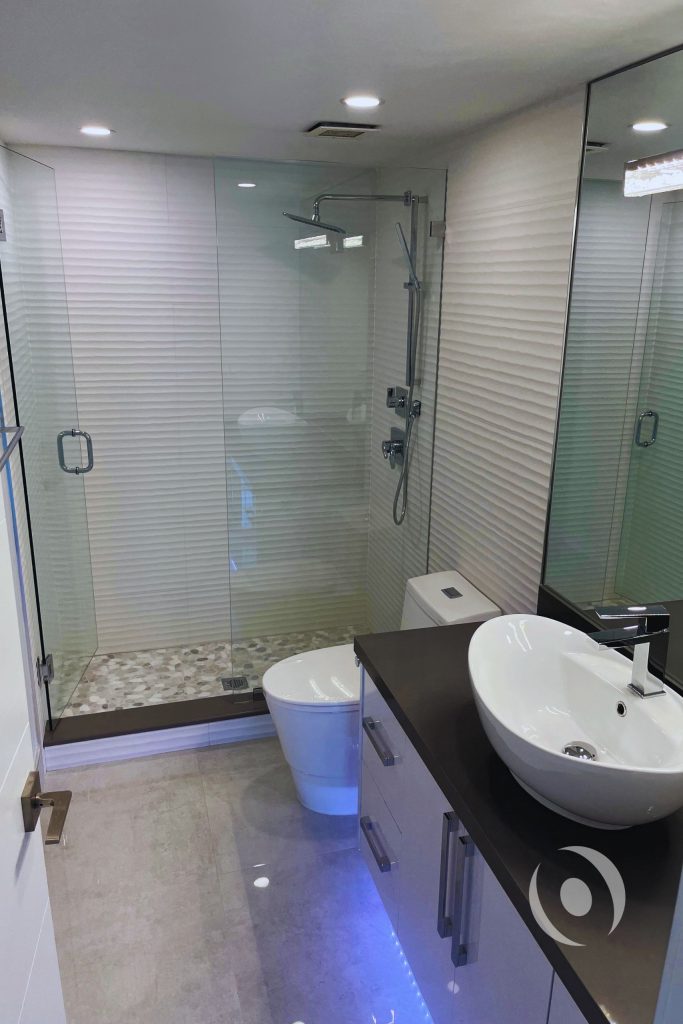

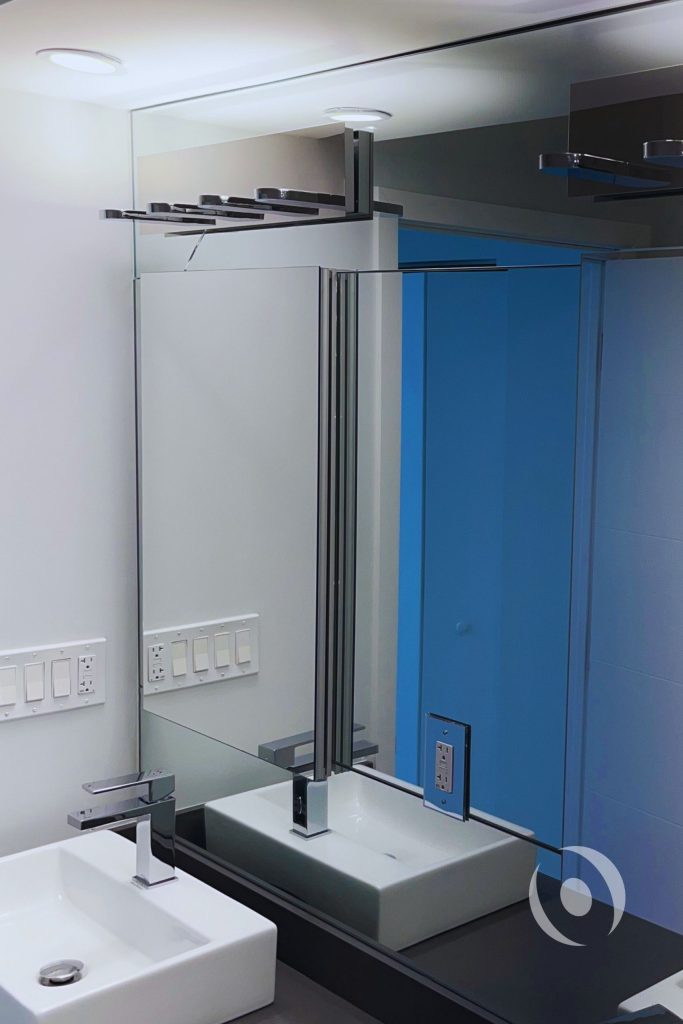

The plumbing engineering rebuilt both bathrooms entirely. The master bath gained a walk-in shower with a heavy-gauge tempered glass sliding door, pressure-balanced valve, and new vanity. The guest bath received a shallow prefab bathtub where the original shower stood. Both bathrooms received new sinks and faucets. The kitchen was plumbed for dual dishwashers, a new sink, and a refrigerator water supply line. Every penetration through a fire-rated wall or floor was sealed with rated foam, keeping the building’s fire assembly intact throughout.
Architectural and MEP construction documents were delivered as one fully coordinated set where every discipline agreed before construction started. For contractors and builders working in South Florida’s high-rise residential market, that is the detail that keeps a project on schedule and a change order log empty.
Built to Perform, Documented to Prove It

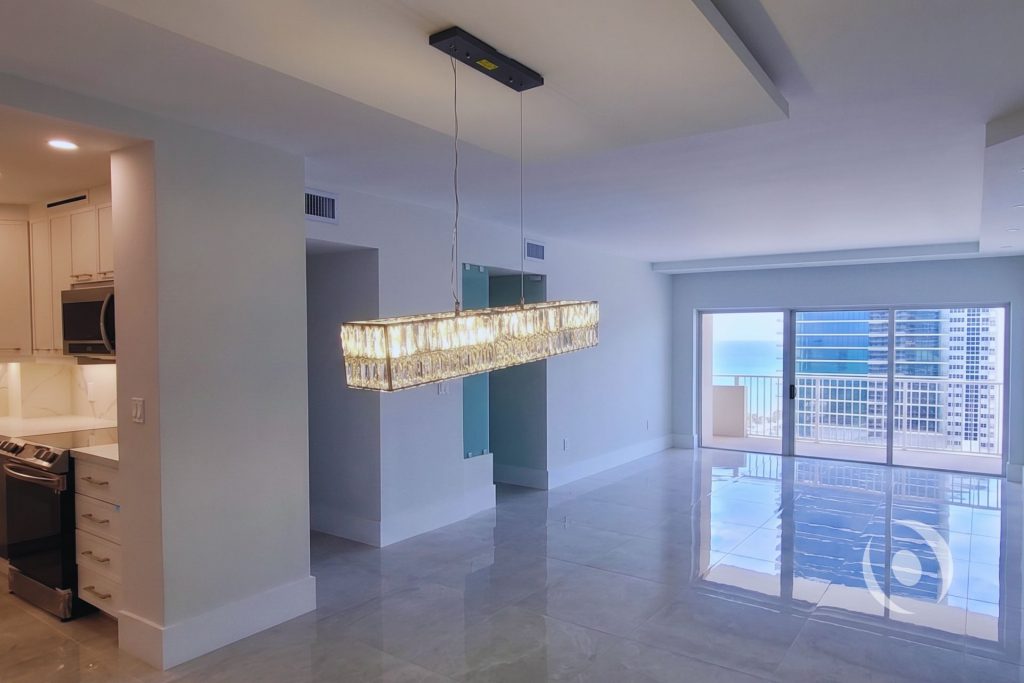

Every room in this Hallandale Beach condominium was redesigned with intent. Every system was replaced or upgraded with licensed engineering behind it. The kitchen works the way it was envisioned. The new office is properly enclosed, lit, and wired. Both bathrooms were reimagined from scratch. And every contractor who worked from these plans had what they needed before they ever stepped on site.
That is what coordinated architectural and MEP engineering looks like in practice. Not just plans that pass review, but plans that make the entire project run better from the first day of demolition to the final inspection.
South Florida’s high-rise residential market demands that level of precision. A properly permitted, fully engineered condominium renovation in Broward County is a different asset entirely, whether you are the one living in it, building it, or representing it.
If your next project deserves that standard, NOHMIS provides full-service Architecture, Structural & MEP Engineering across South Florida. Let’s talk at www.nohmis.com.
